Tp-Link Omada EAP723 7 BE5000 4-Stream Ceiling Mount Dual-Band Wi-Fi 7 Access Point

New

Tp-Link Omada EAP723 7 BE5000 4-Stream Ceiling Mount Dual-Band Wi-Fi 7 Access Point

0 reviews

Product Code:
Availability:

Tp-Link Omada EAP723
In Stock

Dual-Band Wi-Fi 7: Up to 5.0 Gbps (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).

1× 2.5G Port: Ensures fast connectivity throughout the network.

Low Latency and Interference: Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network.

Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup.

Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.

More Connections and Wider Coverage: Supports 250+ concurrent clients* and covers up to 1500 ft² (140 ㎡) **for reliable and extensive wireless connectivity.

Description

HARDWARE FEATURES
Interface	1 × 2.5G Ethernet Port

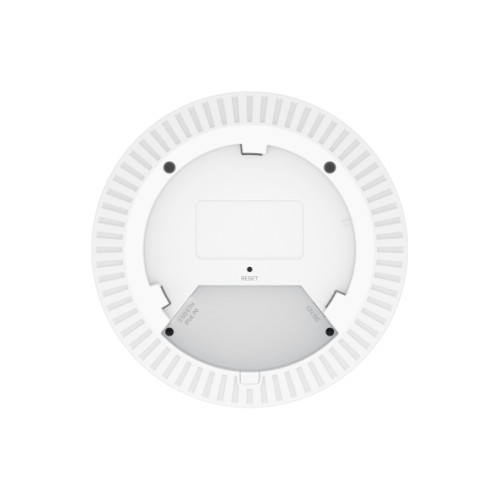

Button	Reset
Power Supply	802.3at PoE 12V/1.5A DC Note: DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.
Max. Power Consumption	17.83 W (For PoE) 13.99 W (For DC)
Dimensions (W × D × H)	6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)
Antenna	2.4 GHz: 2 × 4.0 dBi 5 GHz: 2 × 5.0 dBi

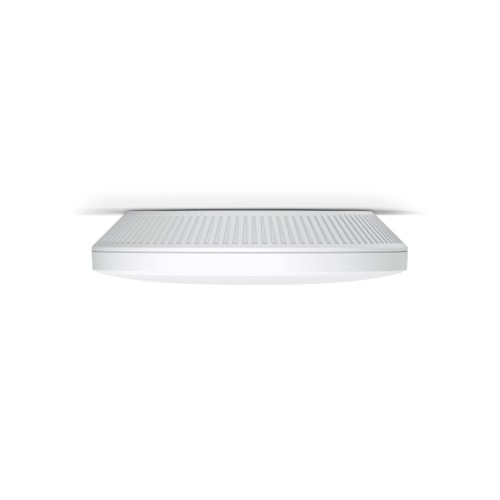

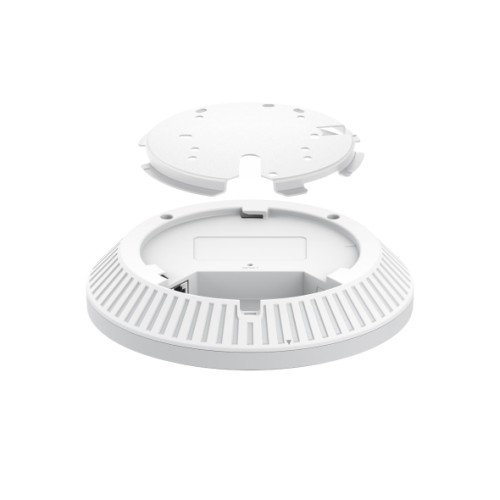

Mounting	Ceiling / Wall / Junction Box Mounting (Kits Included)
MANAGEMENT FEATURES
Omada App	Yes
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
Web-based Management	Yes
WIRELESS FEATURES
Coverage	1500 ft² (140㎡)*
Concurrent Clients	250+**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	2.4 GHz and 5 GHz
Signal Rate	688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Wireless Functions	MLO 4K-QAM Seamless Roaming 240 MHz Bandwidth Mesh OFDMA Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDs: 16 (8 on each band) Wireless Schedule Reboot Schedule QoS (WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication
Wireless Security	Captive Portal Authentication△ Access Control Maximum number of MAC Filter: 4,000 Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/Enterprise
Transmission Power	< 25 dBm (2.4 GHz) < 25 dBm (5 GHz, UNII-1 & UNII-4) < 24 dBm (5 GHz, UNII-2 & UNII-3)
OTHERS
Certification	CE, FCC, IC
Package Content	Omada Wi-Fi 7 Ceiling Mount Access Point EAP723 Installation Guide Ceiling/Wall/Junction Box Mounting Kit
Environment	Operating Temperature: 0 °C–40 °C (32 °F–104 °F) Storage Temperature: -40 °C–70 °C (-40 °F–158 °F) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
