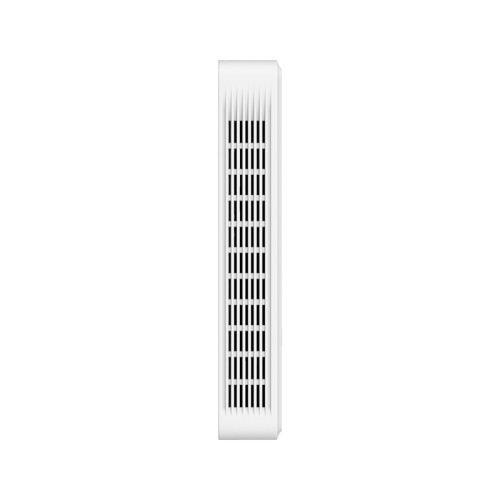

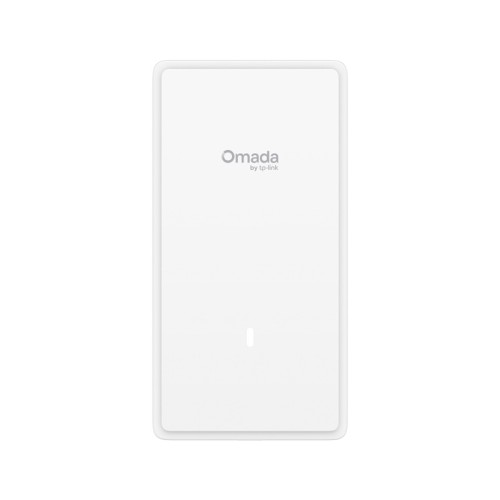

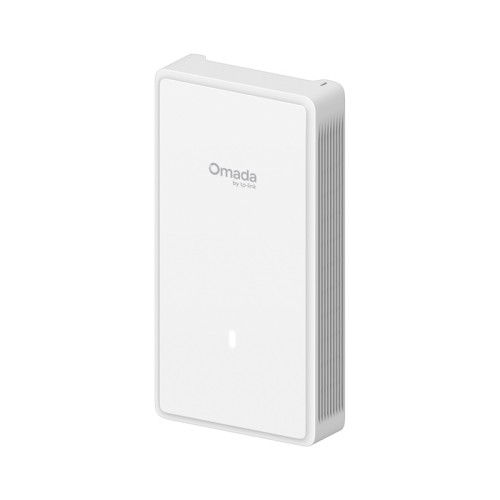

Tp-Link Omada EAP725-Wall 7 Wall BE5000 4-Stream Wall Plate Dual-Band Wi-Fi 7 Access Point
New
Tp-Link Omada EAP725-Wall 7 Wall BE5000 4-Stream Wall Plate Dual-Band Wi-Fi 7 Access Point
Product Code:
Availability:
Availability:
Tp-Link Omada EAP725-Wall
In Stock
In Stock
Dual-Band Wi-Fi 7: 4323 Mbps on 5 GHz and 688 Mbps on 2.4 GHz
Versatile Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out#)
Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM deliver high-performance connectivity.
Flexible Deployment and Easy Setup: Supports 802.3at/bt PoE Input for flexible installation with Omada SDN for one-click setup.
More Connections and Wider Coverage: Supports 250+ concurrent connections* and covers up to 970 ft² (90 m²)** for reliable and extensive wireless connectivity.
Advanced Features: Supports centralized cloud management, PPSK, multiple portals, mesh, and seamless roaming.
Description
| HARDWARE FEATURES | |
|---|---|
| Interface |

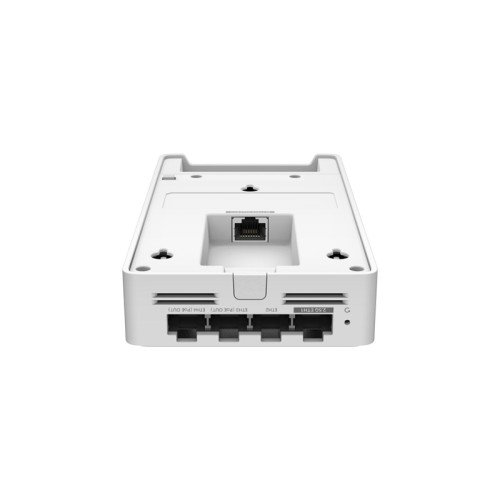

• Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports • Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. • PoE Out feature requires 802.3bt input. |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3at/bt PoE |
| PoE Out |
With 802.3bt Input: • Supports dual PoE or single PoE+ output, with a 30W total power budget. With 802.3at Input: • Supports dual PoE output, with a 7W total power budget. • Limitation: If both ports are connected, one port will shut down automatically if either exceeds 3.5W. |
| Max. Power Consumption | 46.8W with 30W PoE Out (Requires 802.3bt PoE++ Input) |
| Dimensions (W × D × H) | 6.6 × 3.4 × 1.1 in (167.8 × 86 × 28 mm) |
| Antenna |
• 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 5 dBi • Bluetooth: 1 × 1 dBi (Note: The gains above are the single-antenna peak gains) |
| Bluetooth | V5.2 |

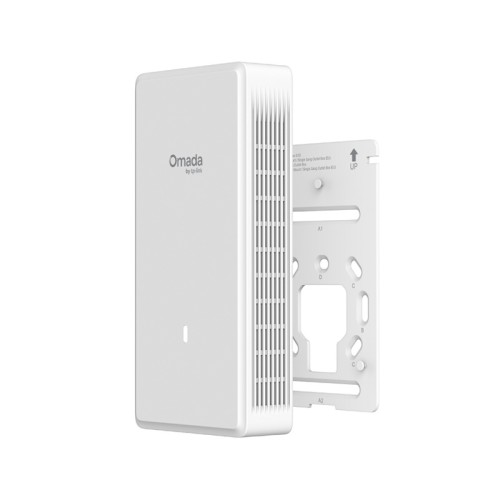

| Mounting | Junction Box / Wall Mounting (Kits included) |
| MANAGEMENT FEATURES | |
| Omada App | Yes (V4.24 and above) |
| Centralized Management |
• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of an Omada Controller. |
| WIRELESS FEATURES | |
| Coverage | 970 ft² (90 m²)** |
| Concurrent Clients | 250+* |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate |
• 5 GHz: Up to 4323 Mbps • 2.4 GHz: Up to 688 Mbps |
| Wireless Functions |
• MLO • 4K-QAM • Multi-RUs • 240 MHz Bandwidth • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • Seamless Roaming • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security |
• Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise • WPA2-Personal/Enterprise • WPA3-Personal/Enterprise |
| Transmission Power |
4–23 dBm (2.4 GHz) 4–24 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3/ISM) |
| OTHERS | |
| Certification | FCC / CE / NCC / VCCI / JRF / BSMI / WFA |
| Package Content |
• EAP725-Wall • Installation Guide • Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -30–70 ℃ (-22–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing • Operating & Storage Altitude: up to +2000 m (6561 feet) |
