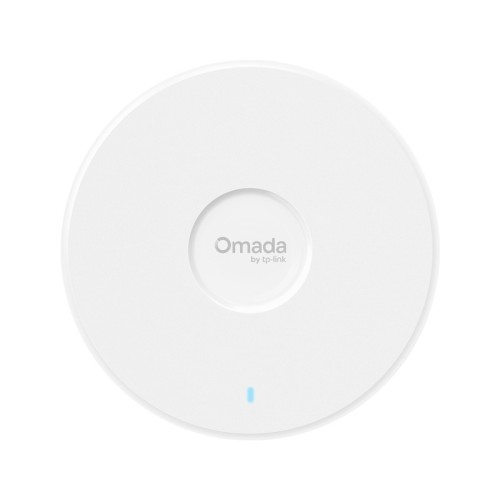

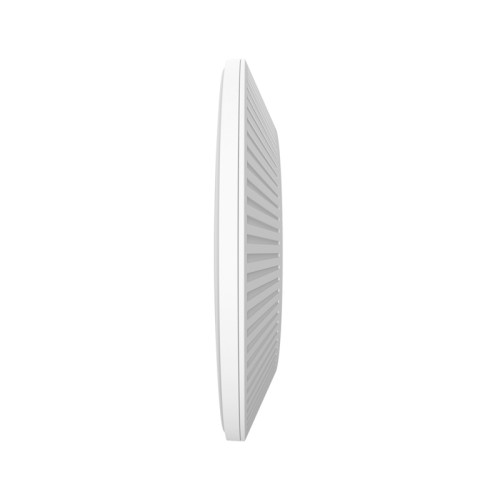

Tp-Link Omada EAP772 7 Pro BE11000 6-Stream Ceiling Mount Wi-Fi 7 Access Point
New
Tp-Link Omada EAP772 7 Pro BE11000 6-Stream Ceiling Mount Wi-Fi 7 Access Point
Product Code:
Availability:
Availability:
Tp-Link Omada EAP772
In Stock
In Stock
BE11000 Tri-Band Wi-Fi 7: 5765 Mbps (6 GHz) + 4324 Mbps (5 GHz) + 688 Mbps (2.4 GHz). Buffering will no longer be a problem.
1× 2.5G Port: Unlock the full potential of Wi-Fi 7.
Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
Low Latency and Interference: Multi-Link Operation, and Multi-RUs ensure high performance of your network.
Advanced Functions：Supports centralized management, Mesh, and Seamless Roaming.
Description
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE 12V/2.5A DC |
| Note | DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length. |
| Max. Power Consumption | 25.4 W (For PoE) 21.8 W (For DC) |
| Dimensions (W × D × H) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna | 2.4 GHz: 2× 4.0 dBi 5 GHz: 2× 5.0 dBi 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 4.0 dBi, Bluetooth 5.2 *Firmware update may be required. |

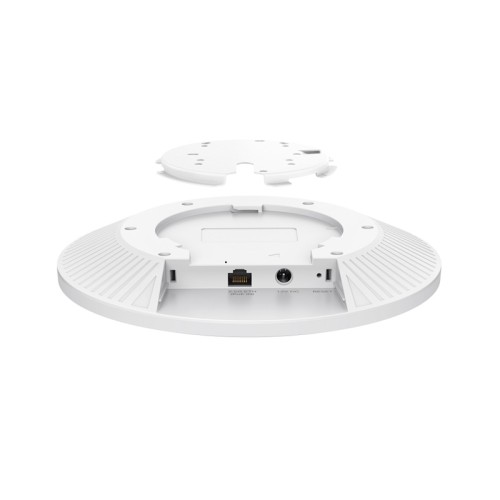

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| WIRELESS FEATURES | |
| Coverage | 1500 ft² (140㎡) |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz) |
| Wireless Functions |
MLO 4K-QAM MU-MIMO 320 MHz Bandwidth Mesh Seamless Roaming (802.11k/v/r) BBS Coloring OFDMA Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDS: 24 (8 on each band) Wireless Schedule Reboot Schedule QoS (WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication |
| Wireless Security |
Captive Portal Authentication△ Access Control Maximum number of MAC Filter: 4,000 Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
< 25dBm (2.4GHz) < 25dBm (5GHz) < 23dBm (6GHz) |
| OTHERS | |
| Certification |
Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security FCC/CE/NCC/VCCI/JRF/BSMI |
| Package Content |
Omada Ceiling Mount Access Point EAP772 Installation Guide Ceiling/Wall/Junction Box Mounting Kits |
| Environment |
Operating Temperature: 0 °C–40 °C (32 °F–104 °F) Storage Temperature: -40 °C–70 °C (-40 °F–158 °F) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
