Tp-Link Omada EAP773 7 Pro X BE11000 6-Stream Ceiling Mount Tri-Band Wi-Fi 7 Access Point

New

Tp-Link Omada EAP773 7 Pro X BE11000 6-Stream Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Product Code:
Availability:

Tp-Link Omada EAP773
In Stock

6-Stream Tri-Band Wi-Fi 7: 5765 Mbps (6 GHz) + 4324 Mbps (5 GHz) + 688 Mbps (2.4 GHz).

1× 10G Port: Future-proof your entire network with Wi-Fi 7.

Low Latency and Interference: 320 MHz bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM deliver high-performance connectivity.

Flexible Deployment and Easy Setup: Supports 802.3at PoE or DC power supply for flexible installation with Omada SDN for one-click setup.

Advanced Features: Supports centralized cloud management, PPSK, multiple portals, mesh, and seamless roaming.

More Connections and Wider Coverage: Supports 380+ concurrent connections** and covers up to 1,500 ft² (140 m²)* for reliable and extensive wireless connectivity.

Description

HARDWARE FEATURES
Interface	1 × 10G Ethernet Port
Button	Reset
Power Supply	802.3at PoE 12V/2.5A DC Note: DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.
Max. Power Consumption	25.4 W (PoE) 22.4 W (DC)
Weight	0.73 kg (1.61 lb)
Dimensions (W × D × H)	8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna	2.4 GHz: 2 × 4 dBi 5 GHz: 2 × 5 dBi 6 GHz: 2 × 5 dBi
Bluetooth	1 × 5 dBi (peak gain), onboard omnidirectional antennas

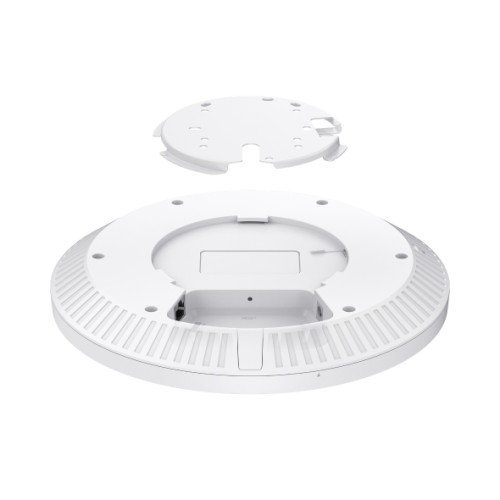

Mounting	Ceiling/Wall/Junction Box Mounting (Kits included) T-Bar Mounting (Kits included)
MANAGEMENT FEATURES
Omada App	Yes
Centralized Management	Omada Central (Cloud-Based) Omada Hardware Controller Omada Software Controller
Cloud Access	Yes. Requires the use of an Omada controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Yes
Web-based Management	Yes
WIRELESS FEATURES
Coverage	140㎡ (1500 ft²)*
Concurrent Clients	380+**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	6 GHz, 5 GHz, and 2.4 GHz
Signal Rate	688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) + 5765 Mbps (6 GHz)
Wireless Functions	MLO 4K-QAM Seamless Roaming (802.11k/v/r) MU-MIMO (2×2 DL/UL MU-MIMO) EHT320 (320 MHz Bandwidth) Mesh BSS Coloring OFDMA Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDs: 24 (8 on each band) Wireless Schedule Reboot Schedule QoS (WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication
Wireless Security	Captive Portal Authentication△ Access Control Maximum number of MAC Filter: 4,000 Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/Enterprise
Transmission Power	4–25 dBm (2.4 GHz) 4–24 dBm (5 GHz, U-NII-2A & U-NII-2C) 4–25 dBm (5 GHz, U-NII-1 & U-NII-3) 4–23 dBm (6 GHz)
OTHERS
Certification	Wi-Fi Alliance: Wi-Fi 7 (R1) Wi-Fi 6 (R2) Wi-Fi 6E WPA3-R3 WPA3-Suite B Enhanced Open Security FCC / CE / NCC / VCCI / JRF / BSMI
Package Content	EAP773 Installation Guide Mounting Kit
Environment	Operating Temperature: 0°C–40°C (32°F–104°F) Storage Temperature: -30°C–70°C (-22°F–158°F) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing Storage: up to +2000 m (6561 feet) Operating: up to +2000 m (6561 feet)
