6-Stream Tri-Band Wi-Fi 7: 5765 Mbps on 6 GHz, 4324 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.

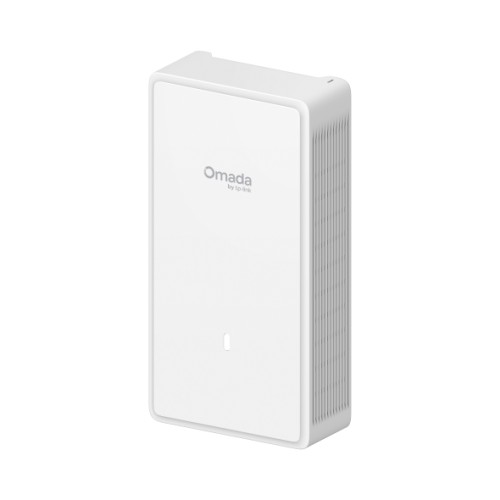

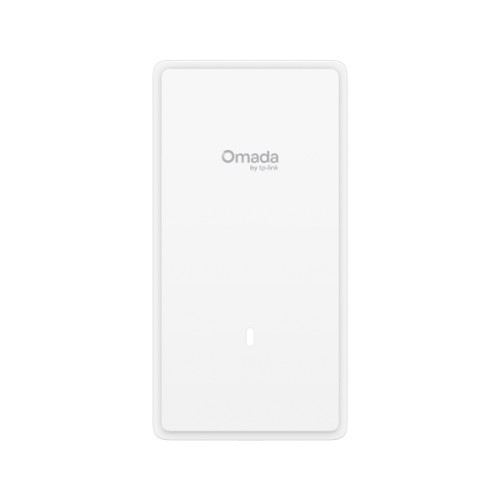

Versatile & Aesthetic Wall-Mounted Design: Slim, versatile wall-mounted design sits flush against the wall for a seamless look and reliable Wi-Fi 7 performance.
Made to Be Discreet with Additional Paintable Cover: Includes an additional paintable cover that blends seamlessly into any wall or interior style.
Anti-Theft Design for Robust Physical Security: Features a concealed anti-theft lock that secures the device flush against the wall, safeguarding your investment.

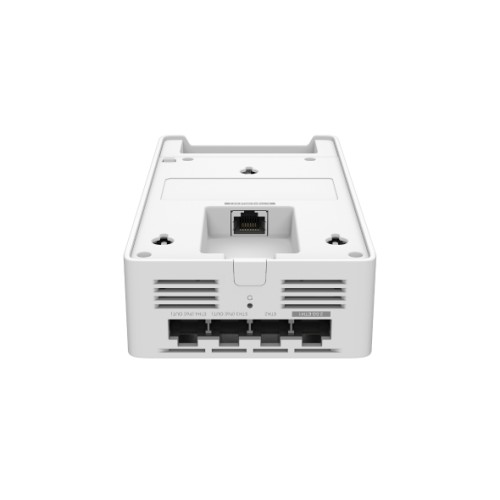

Multiple Ports with PoE Flexibility: 2× 2.5G Ports (1× PoE+/PoE++ In) + 3× Gigabit Ports (2× PoE Out or 1× PoE+ Out). The PoE out feature requires 802.3bt input.
Low Latency and Interference: Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
Easy Setup, Easy to Use: Works with Omada SDN for one-click setup.
Advanced Features: Supports centralized cloud management, mesh, and seamless roaming.
Complete In-Room Wi-Fi with More Connections: Supports 380+ concurrent connections** and covers up to 1050 ft² (100 m²) * for reliable and extensive wireless connectivity.
| HARDWARE FEATURES | |
|---|---|
| Interface |
• Uplink: 1× 2.5G Ethernet Port • Downlink: 1× 2.5G Ethernet Port + 3× Gigabit Ethernet Ports • Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. • PoE Out requires 802.3at input. |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3at/bt PoE |
| PoE Out |
Two Gigabit ports offer flexible PoE Out, providing either dual PoE or single PoE+ output. PoE Out requires 802.3at input. |
| Max. Power Consumption | 45W (with 25W PoE Out) |
| Dimensions (W × D × H) | 6.8 × 3.6 × 1.6 in (172.9 × 91.2 × 41.3 mm) |
| Antenna |
6× Internal Antennas • 2.4 GHz: 2× 5 dBi • 5 GHz: 2× 5.5 dBi • 6 GHz: 2× 5.5 dBi |
| Bluetooth | V5.2 |

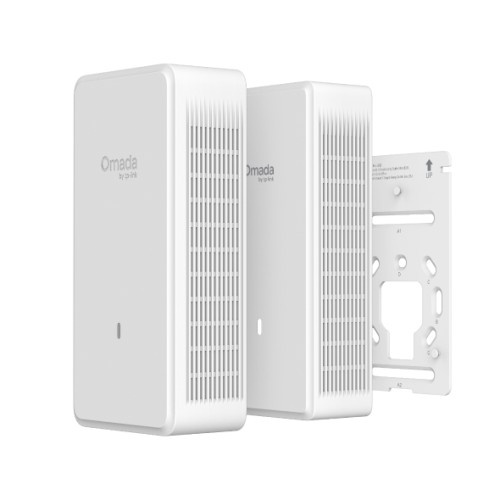

| Mounting | Wall Mounting (Kits included) |
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Centralized Management |
• Omada Hardware Controller • Omada Software Controller • Omada Cloud-Based Controller |
| Cloud Access | Yes. Requires the use of an Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging | Local/Remote Syslog, System Log |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requires the use of an Omada Controller. |
| WIRELESS FEATURES | |
| Coverage | 1050 ft² (100 m²)* |
| Concurrent Clients | 380+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz, and 6 GHz |
| Signal Rate |
• 6 GHz: Up to 5765 Mbps • 5 GHz: Up to 4324 Mbps • 2.4 GHz: Up to 688 Mbps |
| Wireless Functions |
• MLO • 4K-QAM • Multi-RUs • 320 MHz Bandwidth • 24 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • Seamless Roaming • Beamforming • Rate Limit (Based on SSID/Client) • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security |
• Captive Portal Authentication • Access Control • Wireless MAC Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise • WPA2-Personal/Enterprise • WPA3-Personal/Enterprise |
| Transmission Power |
4–22 dBm (2.4 GHz) 4–22 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3) 4–22 dBm (6 GHz) |
| OTHERS | |
| Certification |
• Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B • FCC / CE / NCC / VCCI / JRF / BSMI |
| Package Content |
• EAP775-Wall • Paintable Cover • Installation Guide • Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
| Environment |
• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
