Tp-Link Omada EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

Product Code:
Availability:

Tp-Link Omada EAP783
In Stock

BE22000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 8640 Mbps on 5 GHz + 1148 Mbps on 2.4 GHz).

A clear 6 GHz band brings cleaner and wider band resources.

2× 10G ports unlock the full potential of Wi-Fi 7.

320 MHz bandwidth enables many more simultaneous transmissions.

Multi-Link Operation and Multi-RUs ensure the high performance of your network.

Advanced Functions: Centralized management, mesh, and AI roaming.

Hardware Features
Interface	2× 10G Ethernet Ports
Button	Reset
Power Supply	802.3bt PoE 12V DC Note: DC power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length.
Max. Power Consumption	39W
Dimensions (W × D × H)	11.0 × 11.0 × 1.8 in (280 × 280 × 46.5 mm)
Antenna	Internal Omni 2.4 GHz: 4× 4 dBi 5 GHz: 4× 5.5 dBi 6 GHz: 4× 5 dBi
Bluetooth	Yes

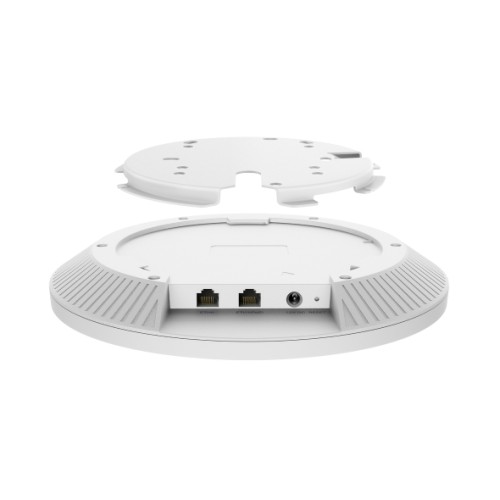

Mounting	Ceiling / Wall Mounting (Kits Included)

Management Features
Omada App	Yes
Restore & Backup	Yes
Firmware Update via Web	Yes
NTP	Yes
Centralized Management	Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller
Cloud Access	Yes. Requires the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes

Wireless Features
Coverage	200 m² (2150 ft²)
Concurrent Clients	760+**
Wireless Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Frequency	6 GHz, 5 GHz, and 2.4 GHz
Signal Rate	6 GHz: Up to 11520 Mbps 5 GHz: Up to 8640 Mbps 2.4 GHz: Up to 1376 Mbps
Wireless Functions	MLO 4K-QAM 4×4 MU-MIMO DL/UL EHT320 (320 MHz Bandwidth) Mesh AI Roaming Automatic Channel Selection and Power Adjustment* BSS Coloring UL/DL OFDMA Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDs Wireless Statistics Wireless Schedule Reboot Schedule RADIUS Accounting MAC Authentication Static IP/Dynamic IP
Wireless Security	PPSK VLAN Access Control Rogue AP Detection Captive Portal Authentication Maximum Number of MAC Filter: 4,000 Wireless Isolation Between Clients WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/Enterprise OWE
Transmission Power	FCC: <28 dBm (2.4 GHz) <28 dBm (5G band 1 & band 4) <24 dBm (5G band 2 & band 3) <28 dBm (6 GHz)

General
Weight	Net Weight: 1384.6 g

Others
Certification	Wi-Fi Alliance Certification CE, FCC, IC
Package Content	EAP783 Installation Guide Ceiling/Wall Mounting Kits
Environment	Operating Temperature: 0 °C–40 °C (32 °F–104 °F) Storage Temperature: -40 °C–70 °C (-40 °F–158 °F) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing
