Tp-Link Omada EAP787 7 Max - BE15000 8-Stream Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Tp-Link Omada EAP787 7 Max - BE15000 8-Stream Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Product Code:
Availability:
Availability:
Tp-Link Omada EAP787
In Stock
In Stock
Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.
Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance (AFC enabled via firmware update, planned for April, 2026).
Tri-Band 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.
1× 10G Port: Ensures fast connectivity throughout the network
Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.
More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 2000 ft² (185 m²)* for reliable and extensive wireless connectivity.
Description
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 10G/2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3bt/at PoE 12V/2.5A DC |
| Note | DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length. |
| Max. Power Consumption | 29 W (For PoE) 24.5W (For DC) |
| Dimensions (W × D × H) | 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm) |
| Antenna | 2.4 GHz: 2× 4.0 dBi 5 GHz: 4× 5.0 dBi 6 GHz: 2× 5.0 dBi |
| Bluetooth | 1 × 5 dBi (peak gain), Internal antenna module *Firmware update may be required. |

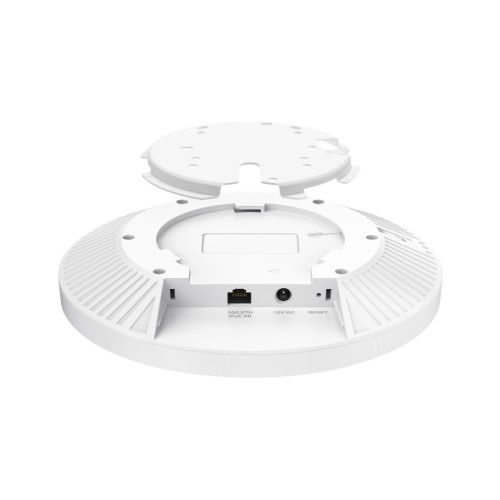

| Mounting | Ceiling / Wall / Junction Box Mounting (Kits Included) |
| MANAGEMENT FEATURES | |
| Omada App | Yes |
| Centralized Management | Omada Central (Cloud-Based) Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Require the use of an Omada controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| WIRELESS FEATURES | |
| Coverage | 2000 ft² (185 m²)* |
| Concurrent Clients | 510+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 6 GHz, 5 GHz, and 2.4 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)† |
| Wireless Functions |
320 MHz Bandwidth‡ MLO 4K-QAM Multi-RUs Seamless Roaming (802.11k/v/r) MU-MIMO Mesh BSS Coloring OFDMA Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDS: 24 (8 on each band) Wireless Schedule Reboot Schedule QoS (WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC Authentication |
| Wireless Security |
Captive Portal Authentication△ Access Control Mac Filter Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power |
4-25 dBm (2.4 GHz) 7-29 dBm (5 GHz, U-NII-1 & U-NII-3) 7-26 dBm (5 GHz, U-NII-2A) 7-24 dBm (5 GHz, U-NII-2C) 4-23 dBm (6 GHz) |
| OTHERS | |
| Certification |
Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security FCC/CE/NCC/VCCI/JRF/BSMI |
| Package Content |
EAP787 Installation Guide Ceiling/Wall/Junction Box Mounting Kit Note: Power Adapter is NOT included. |
| Environment |
Operating Temperature: 0 °C–40 °C (32 °F–104 °F) Storage Temperature: -40 °C–70 °C (-40 °F–158 °F) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
